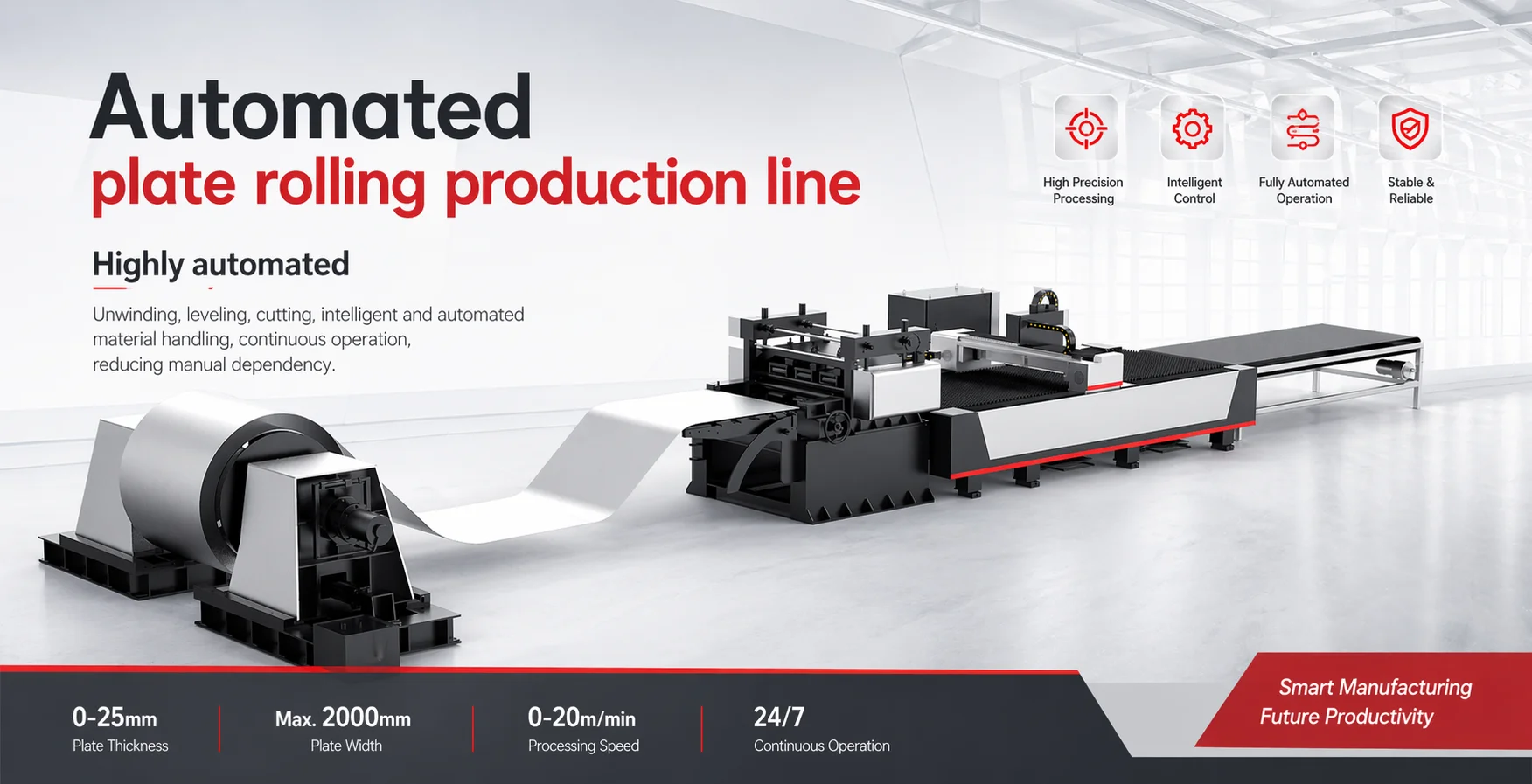

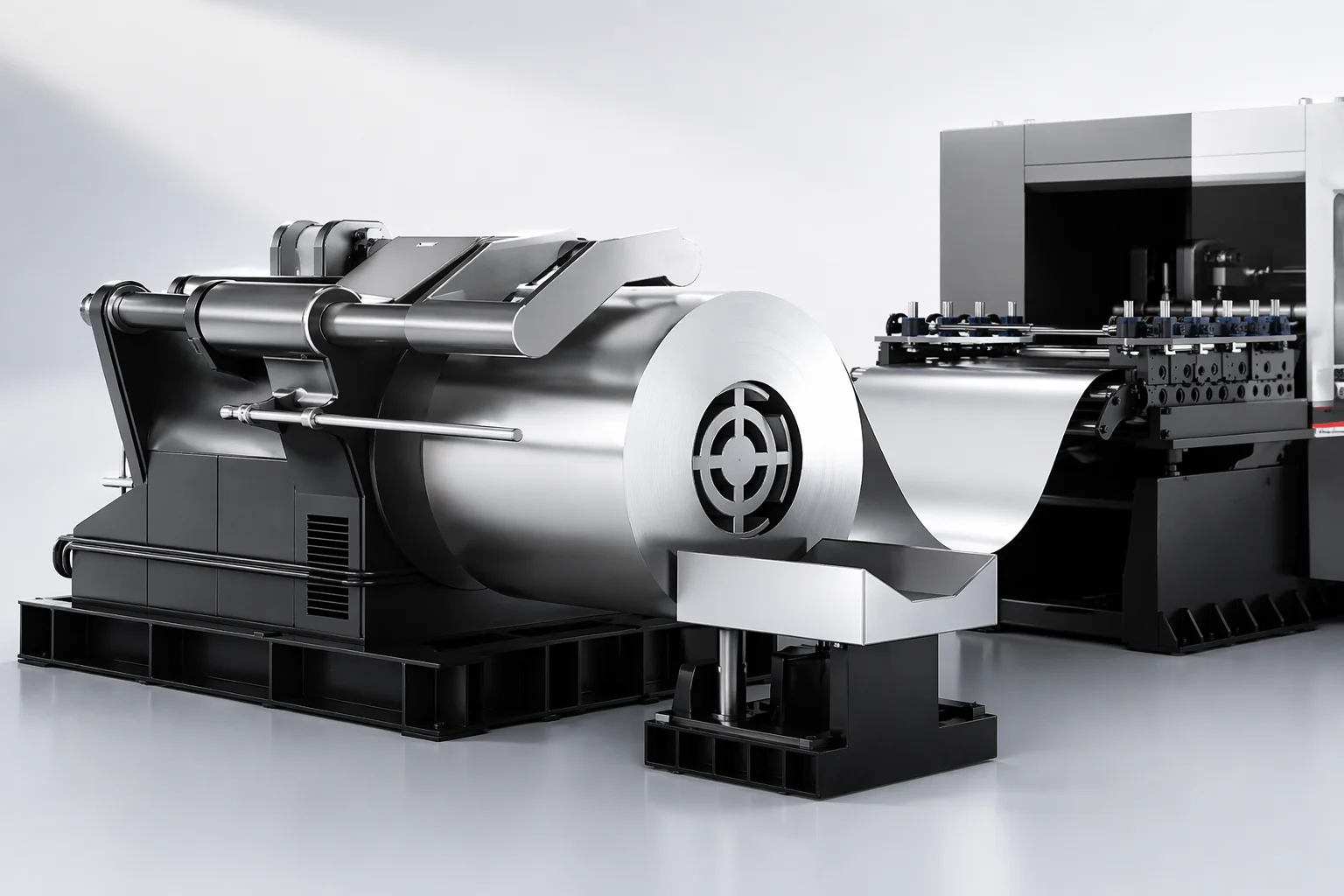

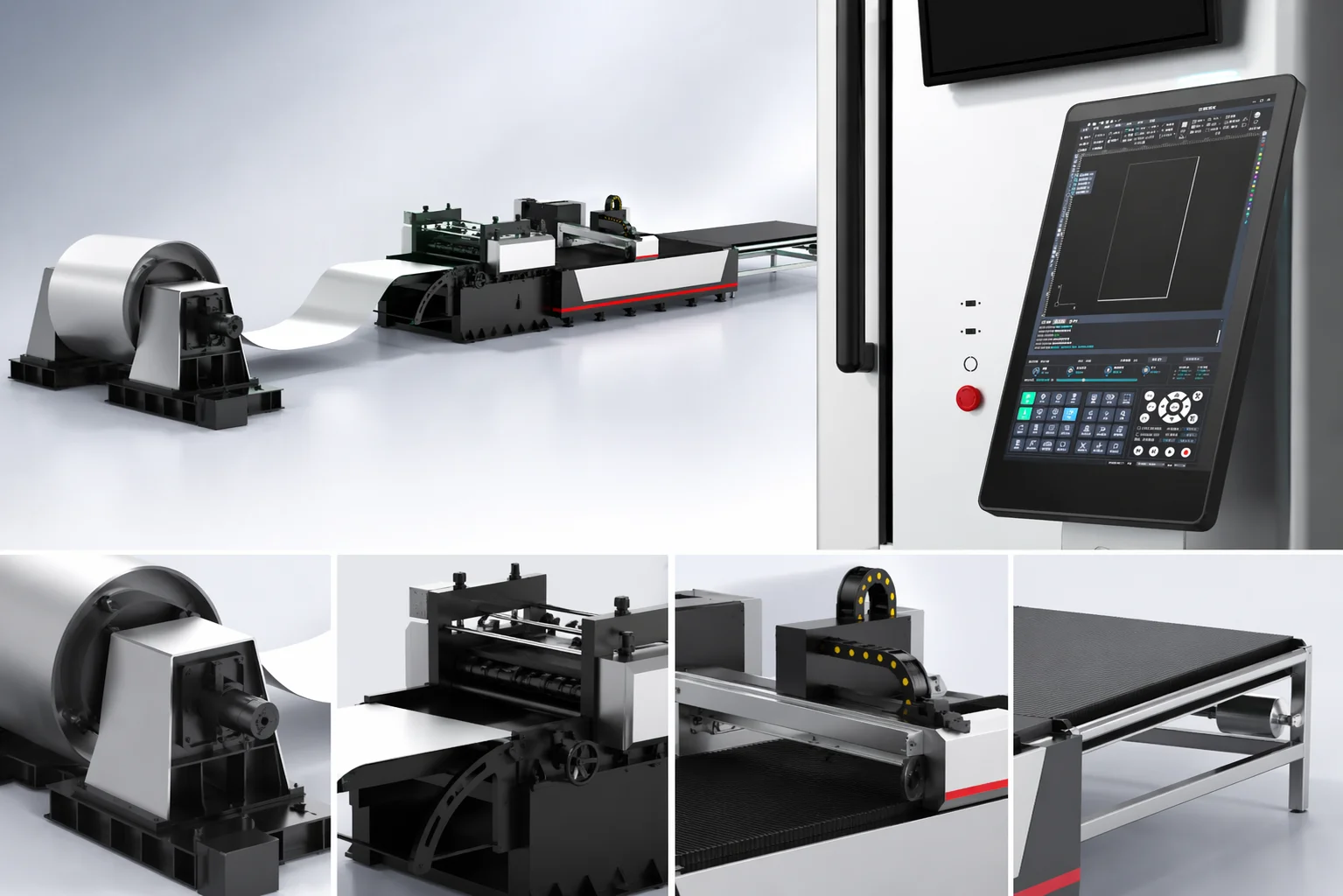

Plate Rolling Production Line with intelligent control for automated coil unwinding, leveling, and cutting.
Through intelligent control, different products can be produced by importing processing drawings, meeting the batch production needs of different shapes and variable workpieces.
| Parameter | 3015B | 6015B |
|---|---|---|
| Laser Power | 1500W - 20000W | |
| Working Area | 3000 x 1500 mm | 6000 x 1500 mm |
| Coiled Material Inner Diameter | Φ508mm – Φ610mm | |
| Coiled Material Width | 500-1500 mm | |
| Coiled Material Thickness (Carbon Steel) | 0.8 - 3 mm | |
| Coiled Material Thickness (Stainless Steel) | 0.8 - 2 mm | |
| Max Outer Diameter of Coiled Material | Φ1500 mm | |
| Min Outer Diameter of Coiled Material | Φ800 mm | |
| Max Material Weight | 10 tons | |
| Feeding Speed | 0-20 m/min | |
| X/Y Axis Positioning Accuracy | ±0.05 mm/m | |
| X/Y Axis Repeat Positioning Accuracy | ±0.03 mm | |
| X/Y Axis Max Acceleration | 1.0 G | |
| X/Y Axis Max Moving Speed | 120 m/min | |
| Dimensions (L×W×H) | 15500 x 6000 x 2550 mm | 16000 x 4000 x 2100 mm |
