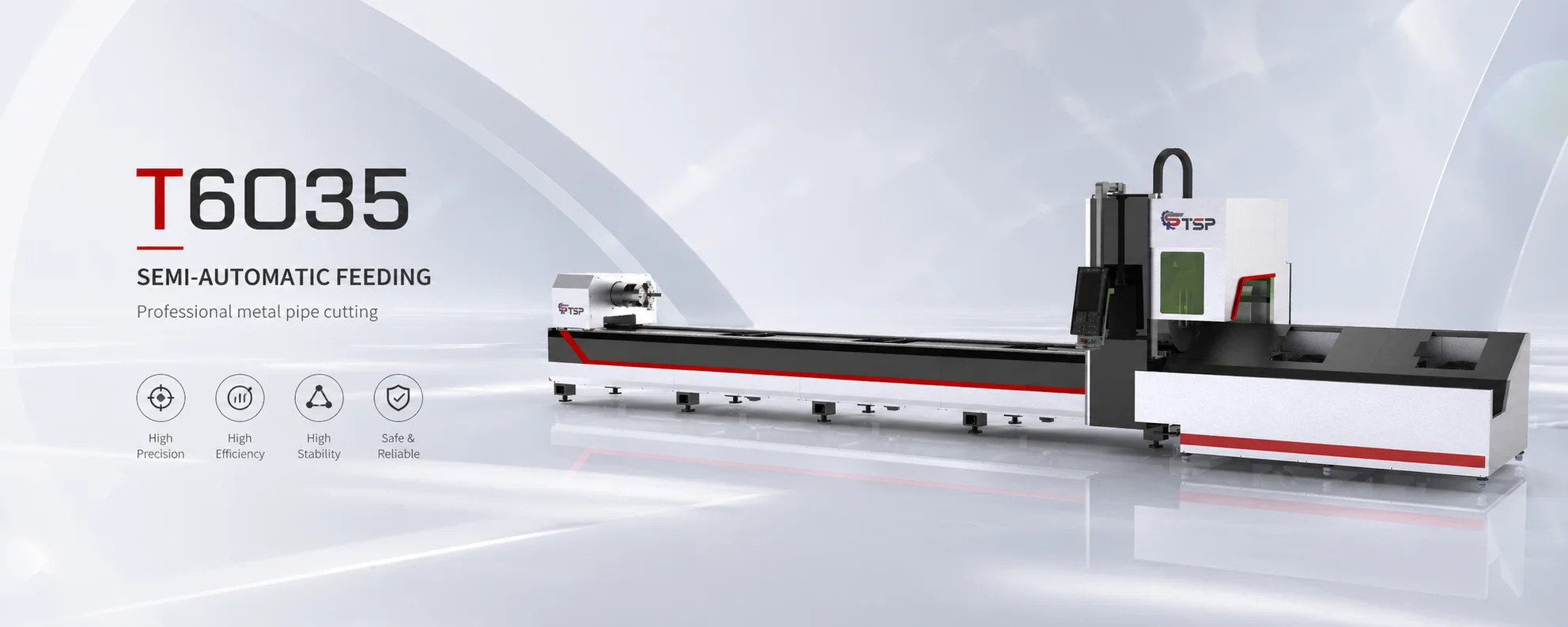

High-performance dual-chuck laser tube cutting system designed for precision, efficiency, and minimal material waste.
Equipped with premium configurations, this series adopts dual-chuck design for ultra-short tailing cutting.
A practical two-chuck tube cutter offering excellent value for small-batch production. Compatible with a wide range of tube materials.
Two support units are mounted on the bed, with two available options:
Servo-driven vertical movement provides real-time support for long, small-diameter pipes prone to deformation. Lowers automatically to avoid interference when the rear chuck passes.
Cylinder-lifted design with manual position adjustment, suitable for supporting pipes of various diameters.

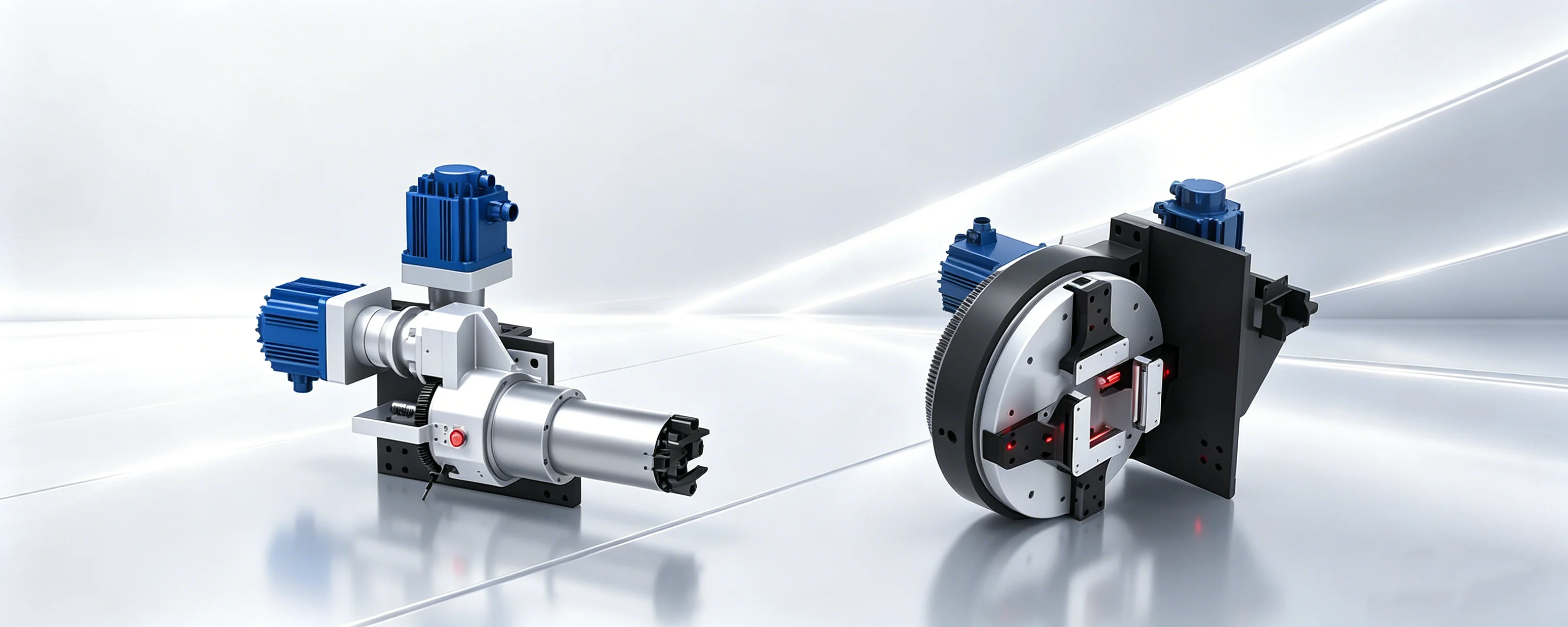

Front and rear full-stroke pneumatic chucks, both movable in the Y-axis. The rear chuck handles clamping and feeding, while the front chuck secures the material. Both are servo-driven for synchronized rotation.
Dual-chuck clamping enables short tail cutting down to 20–40 mm, while also supporting longer tail processing.
The T series adopts a moving-and-avoidance chuck design, allowing continuous dual-chuck cutting for improved stability and consistent precision, even with long pipes.
Delivers precise clamping with a dust-resistant design for extended durability. Lightweight aluminum construction ensures strong load capacity and stable performance in demanding environments.
| Parameter | Specification |
|---|---|
| Model | T6035 |

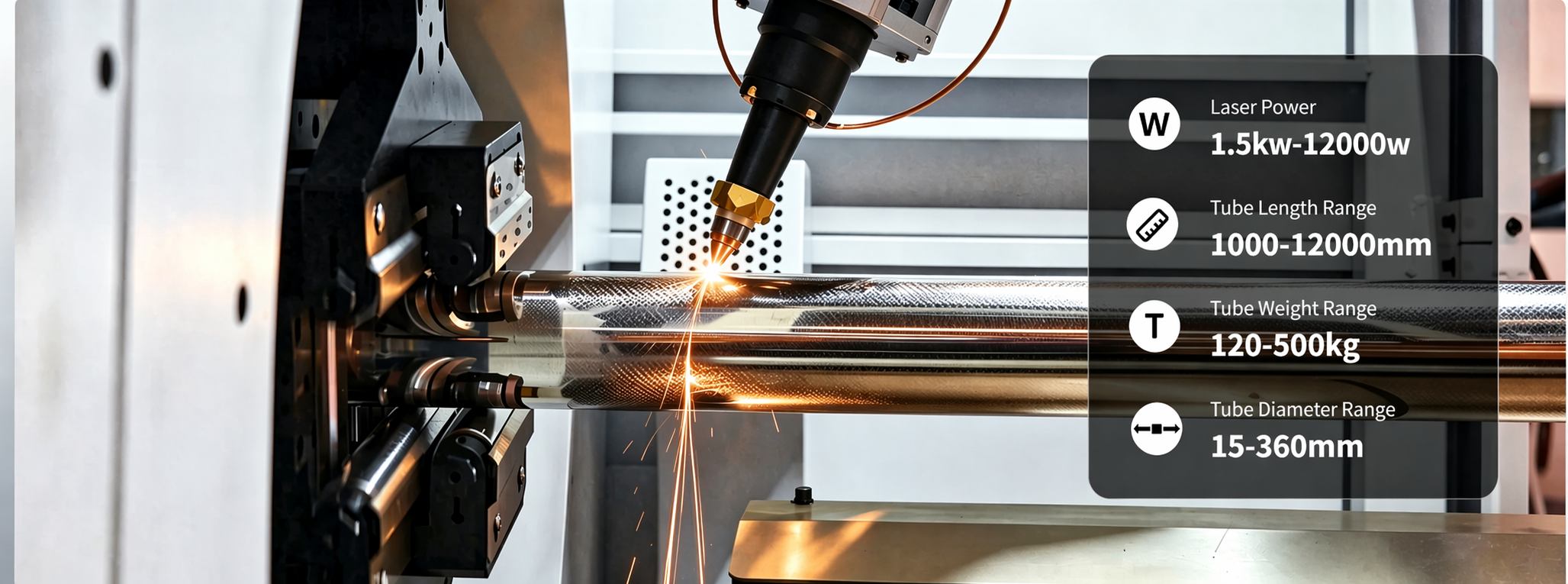

| Laser Power | 1500W, 2000W, 3000W, 6000W, 8000W, 10000W, 12000W, 15000W, 20000W |
| Clamping Range (Round Tube) | Φ20-220 mm / Φ20-350 mm |
| Clamping Range (Square Tube) | 20×20-150×150 mm / 20×20-245×245 mm |
| Maximum Idle Running Speed | 60 m/min |
| Position Accuracy | ±0.03 mm |
| Repeat Positional Accuracy | ±0.02 mm |
| Voltage & Frequency | 380V 50Hz |
| Machine Warranty | 3 years |
