T6023 Laser Tube Cutting Machine

Professional pipe laser cutting machine delivering ±0.03mm precision, 30% higher efficiency, intelligent control, and automatic unloading for industrial tube cutting.

Product Gallery

High-Precision CNC Laser Tube Cutting Machine for Industrial Metal Fabrication

Our fiber laser tube cutter delivers fast, clean cuts for metal pipes from 15mm to 360mm in diameter, 1000mm to 12000mm in length, and 120-500kg in weight. With 1.5kW to 12kW power options, it handles carbon steel, stainless steel, and aluminum for automotive, construction, and furniture applications with burr-free, high-efficiency results.

Support Mechanisms

Two support units are mounted on the bed, with two available options:

1. Follow-Up Support

Servo-driven vertical movement provides real-time support for long, small-diameter pipes prone to deformation. Lowers automatically to avoid interference when the rear chuck passes.

2. Adjustable Wheel Support

Cylinder-lifted design with manual position adjustment, suitable for supporting pipes of various diameters.

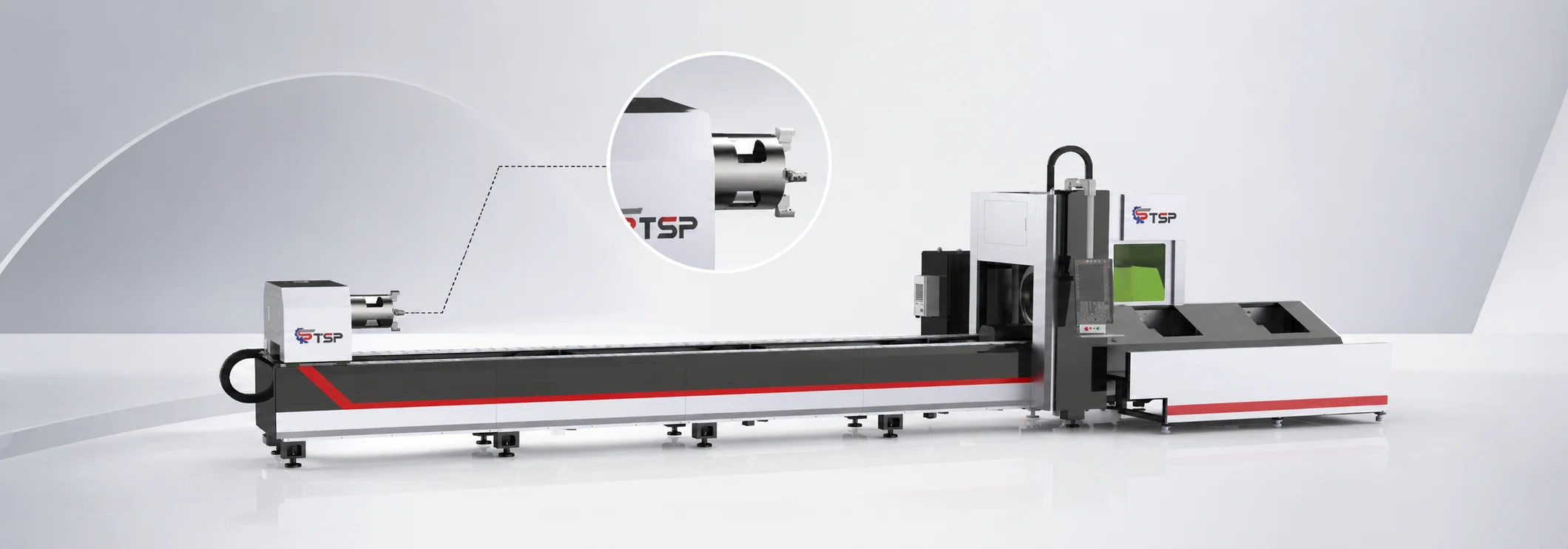

Chuck System

Front and rear full-stroke pneumatic chucks, both movable in the Y-axis. The rear chuck handles clamping and feeding, while the front chuck secures the material. Both are servo-driven for synchronized rotation.

Dual-chuck clamping enables short tail cutting down to 20–40 mm, while also supporting longer tail processing.

The T series adopts a moving-and-avoidance chuck design, allowing continuous dual-chuck cutting for improved stability and consistent precision, even with long pipes.

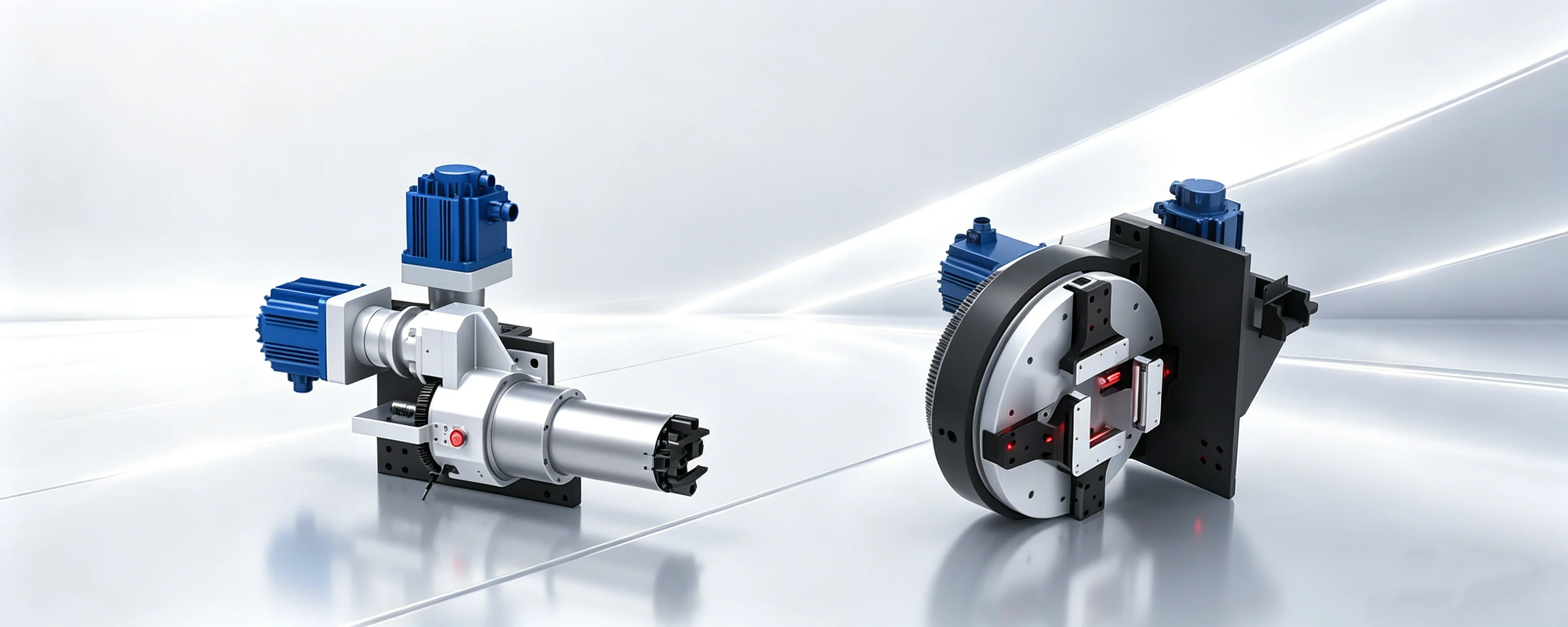

High-Precision Two-Chuck

Built for Precision & Durability. Achieve consistent, high-accuracy clamping with our two-chuck system. Featuring a dust-proof design for longer service life and a lightweight aluminum structure that balances robust load capacity with stable operation, it's ideal for demanding high-load production environments.

Technical Specifications

Parameter	Specification
Model	T6023
Laser Power	1500W, 3000W, 6000W, 8000W, 10000W, 12000W, 15000W, 20000W (Higher power optional)
Round Tube Diameter	20-220mm
Square Tube Side Length	20-220mm
Load-bearing	160 kg
Cutting Accuracy	±0.1 mm
Positioning Accuracy	±0.1 mm
Electricity Demand	380V 50Hz
