4in1 Handheld Laser Welding Machine

HJ 3-in-1 Handheld Laser Welding Machine integrates laser welding, cleaning, and cutting functions. Available in 1000W-3000W, delivering fast, precise processing for stainless steel, aluminum, and metal fabrication.

Product Gallery

Handheld Laser Welder at High Performance

Featured by high performance, stability and smart interconnection, this premium 4-in-1 system is designed for mid- to high-end manufacturers who need superior weld quality and high consistency among workpieces.

Machine Features

• The super-powered laser welding, cleaning and cutting three-in-one system supports handheld laser welding, laser cleaning, and laser cutting at the same time. The working mode can be switched freely according to different application scenarios.
• The product covers welding heads/cleaning heads and self-developed control systems, and is equipped with multiple safety alarms and active safety power and light cut settings.
• The product can be adapted to various brands of fiber lasers, and the optical and water-cooled design is optimized so that the laser head can work stably for a long time under 2000W.

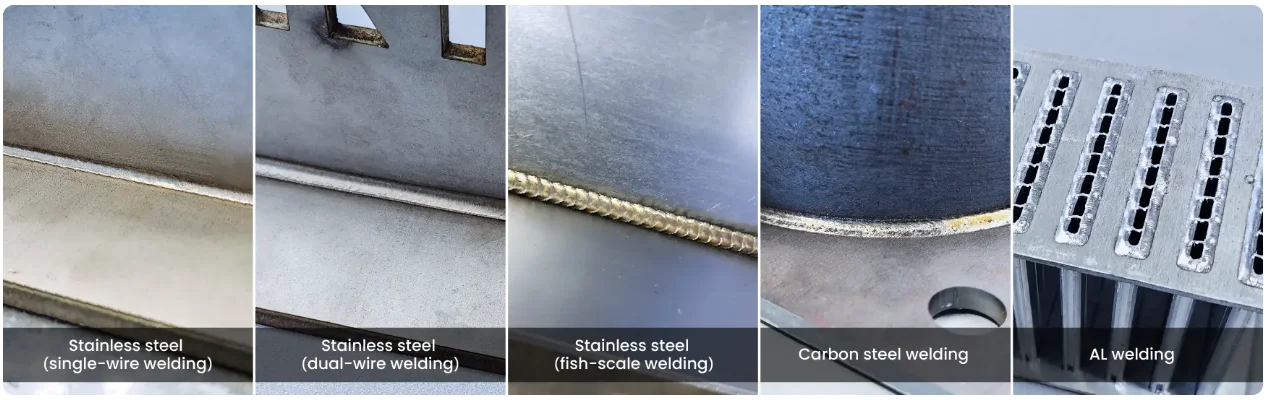

Excellent Welding Effects

Due to high energy density and low heat input, it can weld stainless steel, carbon steel, AL and other metals with high-strength, nice-pleasing weld seams that face minimal deformation.

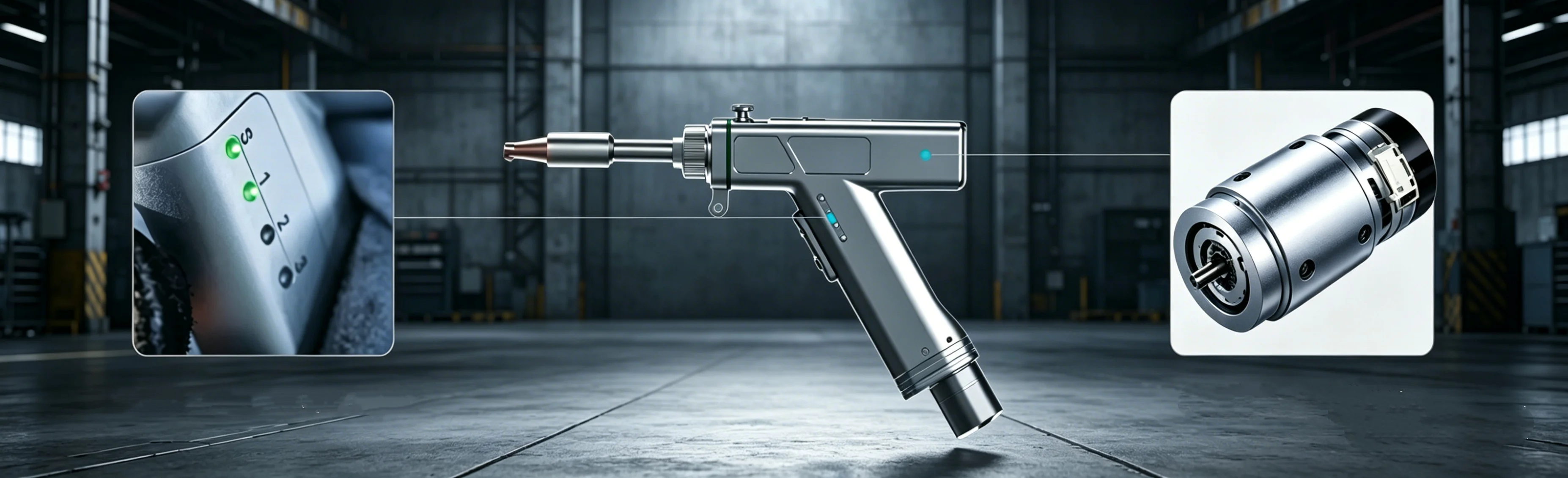

Lightweight & High-Reliability Laser Welding Gun

The torch minimizes user fatigue even during extended working hours. The integrated 4-in-1 system ensures outstanding anti-jamming capability and consistent, stable performance.

Technical Specifications

Parameter	HJ-1500	HJ-2000	HJ-3000
Laser Power (kW)	1.5	2	3
Laser Wavelength (nm)	1080 ± 10
Welding Sheet Thickness (mm)	≤4	≤5	≤7
Filler Wire Diameter (mm)	0.8-1.6		0.8-2
Welding Gun Weight (kg)	≤0.75
Welding Gun Line Length (m)	10
Machine Net Weight (kg)	220	220	265
Power Supply: Three-phase 380V, 50Hz/60Hz (custom-made)
