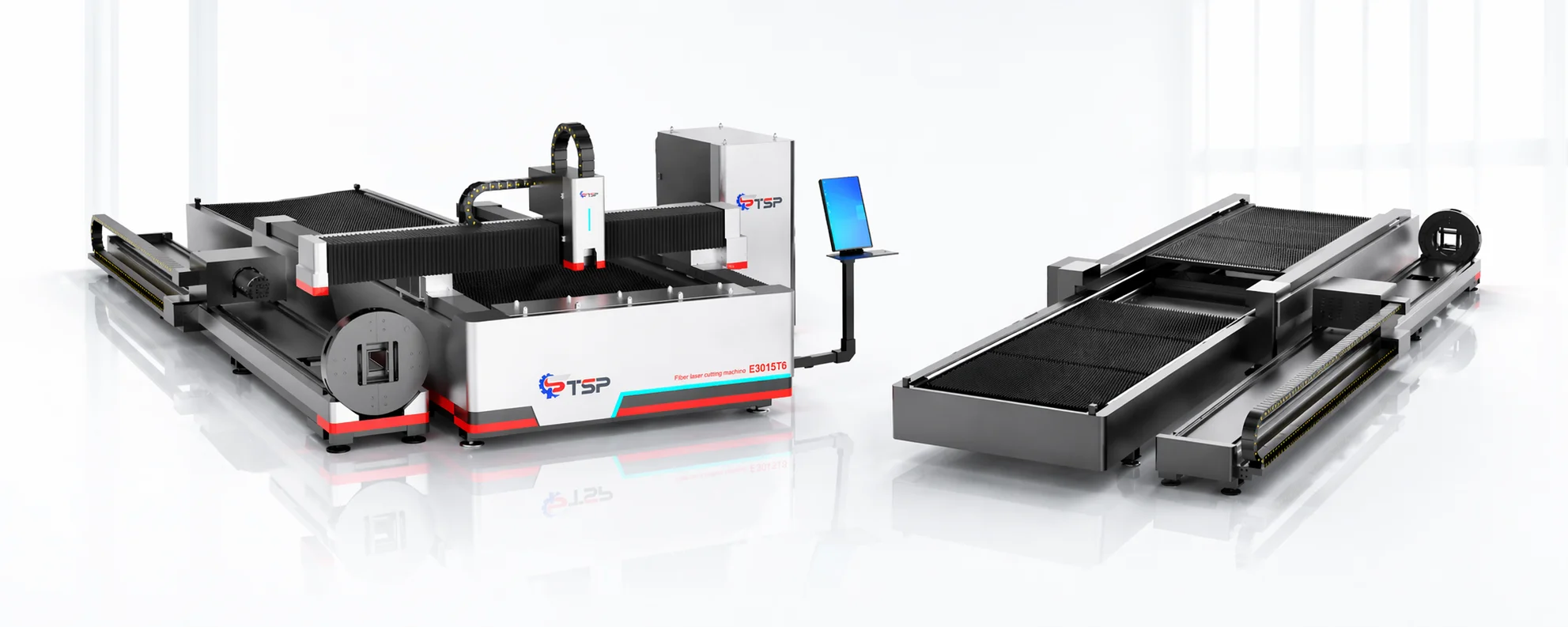

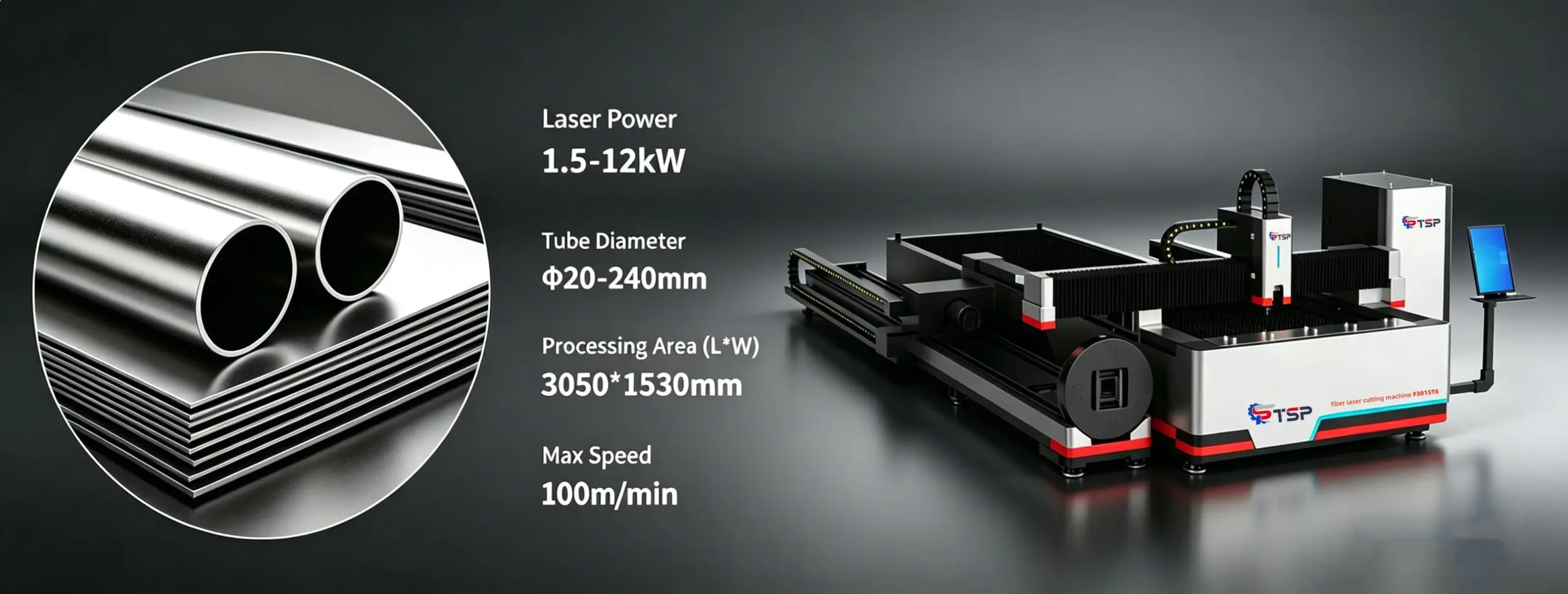

E3015T Sheet & Tube Fiber Laser Cutter

Integrated Sheet & Tube Processing. One machine handles both sheet and tube cutting, reducing equipment investment and factory space while increasing production flexibility.

Product Gallery

Advantages of TSP ET Fiber Laser Tube & Sheet Cutting Machine

High Precision

Focused laser beam enables accurate, clean cutting, ideal for high-precision applications.

High Efficiency

Fast cutting speed with adjustable power and motion improves productivity. Non-contact processing reduces time and supports mass production.

Flexibility

Programmable cutting allows easy adaptation to different shapes, especially complex contours in sheet metal.

Versatility

Suitable for a wide range of metals, including high-hardness and high-melting-point materials. Minimal heat impact ensures less deformation and reduced post-processing.

High-Rigidity Bed with Ball Transfer Unit

Bed thickness: 12 mm, height: 880 mm, with high load-bearing capacity to support stable operation of multi-kilowatt lasers. Equipped with standard ball transfer units, sheet loading is smooth and effortless, improving efficiency and reducing labor intensity.

High-Precision Square Chuck

Equipped with a 240mm square chuck with a maximum load of 260kg, providing a wider clamping range suitable for round, square, and rectangular tubes.

Technical Specifications

Parameter	Specification
Machine Model	E3015/4015/6015/4020/6020/6025/8025T
Laser Power	3000W, 4000W, 6000W, 8000W, 10000W, 12000W, 15000W, 20000W (optional)
Working Area	1530 x 3050 mm (Other sizes customizable)
Repeated Positioning Accuracy	±0.02 mm
Max Running Speed	120 m/min
Max Acceleration	1.5G
Voltage & Frequency	380V 50/60Hz
Machine Dimensions (Exchange table)	5200 x 3000 x 2400 mm
Chiller + Controller Dimensions	1830 x 920 x 2110 mm
