A3015 Single-platform Laser Cutting Machine

A3015 Laser Cutter with single-platform design, offering fast, accurate, and efficient sheet metal cutting for industrial applications.

Product Gallery

Affordable Plate Cutting Solution

Streamlined open design for metal sheet processing. Compact footprint. Lower initial investment. Economy-class sheet metal cutter. The A3015 features an open design and is specifically designed for cutting sheet metal.

Zone Dust Removal (Optional)

Based on different working conditions, an optional partition dust removal system can be selected to more efficiently capture and remove smoke and dust generated during cutting, helping to protect both the equipment and the working environment.

Superior Dynamic Performance for Ultra-Fast Cutting

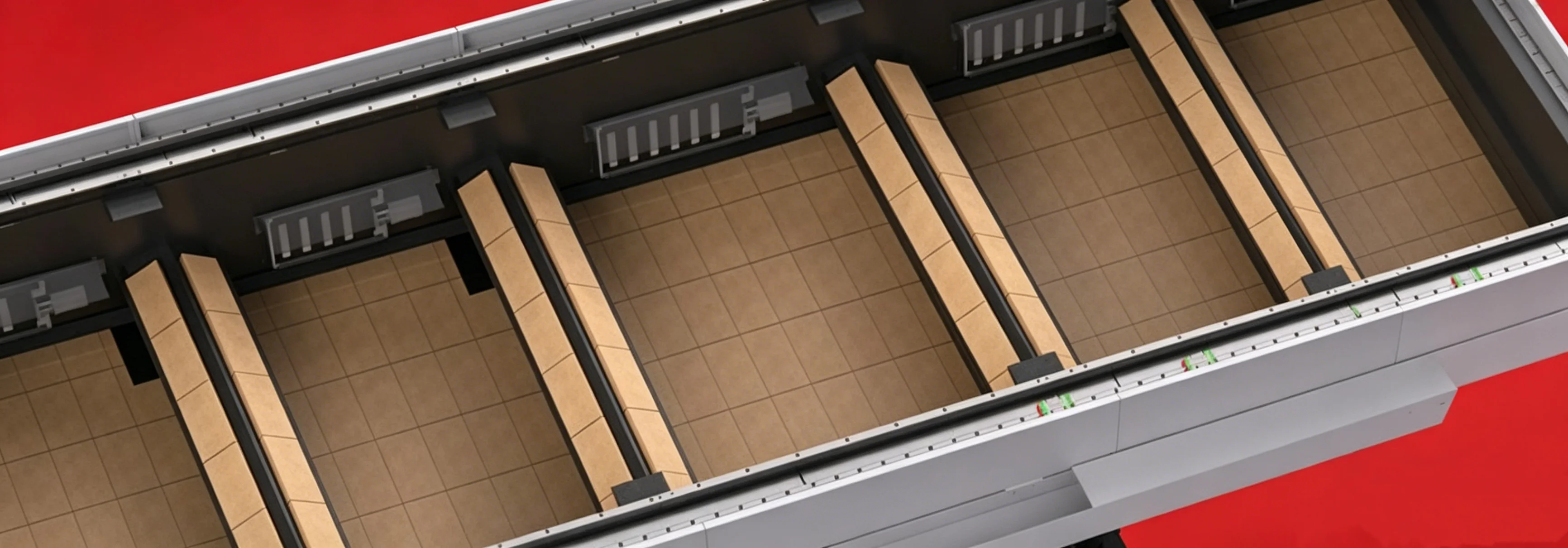

The hollow bed effectively blocks heat transfer, while the high-strength aluminum alloy beam—lightweight yet rigid—delivers exceptional dynamic performance, enabling lightning-fast cutting of metal sheets.

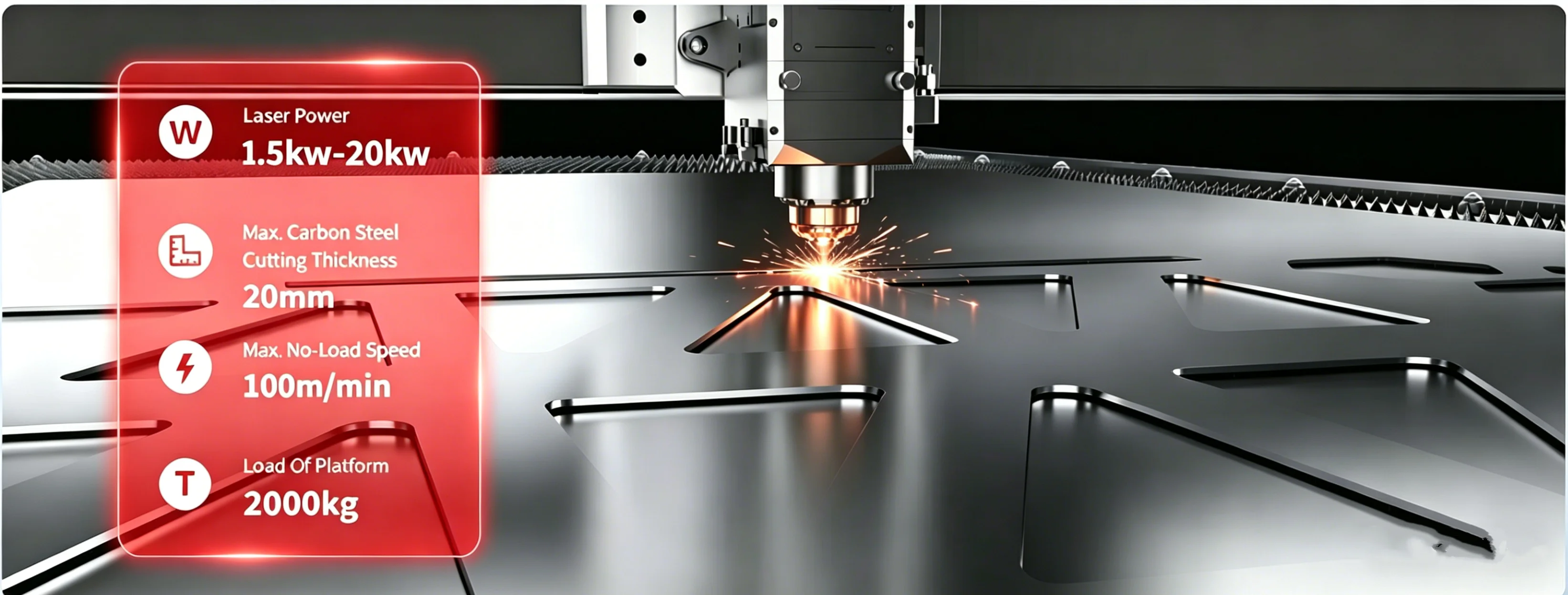

High-Precision Metal Plate Cutting

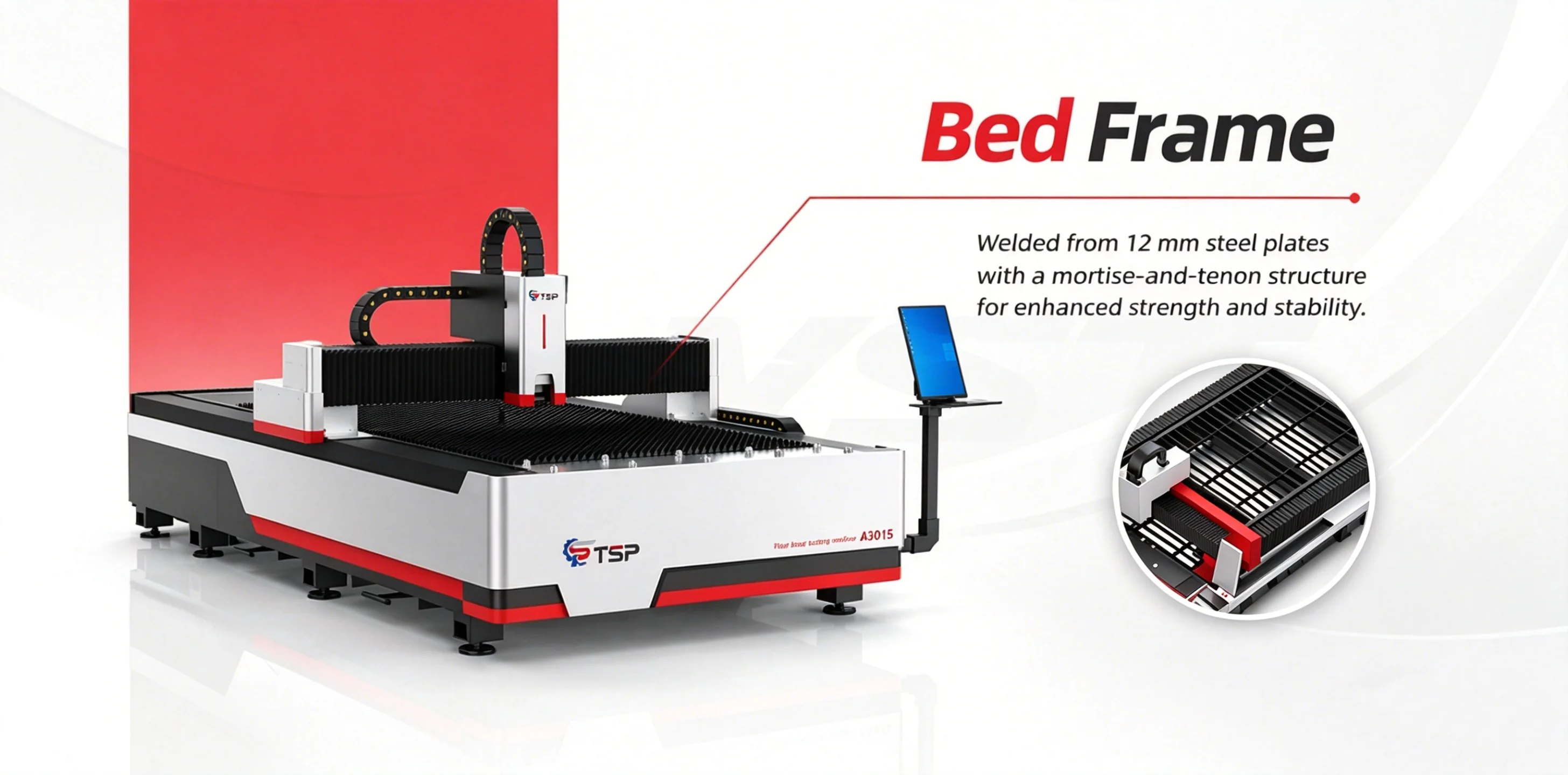

Rigid integrated bed prevents deformation. Paired with advanced laser head, it delivers neat, low-wear cutting for all common metal sheets with high efficiency.

Technical Specifications

Parameter	Specification
Model	A3015
Laser Power	1.5kW, 3kW, 6kW, 8kW, 10kW, 12kW, 15kW, 20kW
Working Voltage	220V/380V 50-60Hz
Working Area	3050 x 1530 mm
Position Accuracy	≤0.01mm
Repeat Positional Accuracy	±0.01mm
Work Environment	0-45°C, Moisture 45-85%
Max Running Speed	120 m/min
