3D & 5 Axis ROBOTIC CNC Fiber Laser Cutting Machine

Discover our fiber laser cutters and find the product suited for your business. The H Beam fiber laser cutting machine series is characterized by high dynamics and top quality.

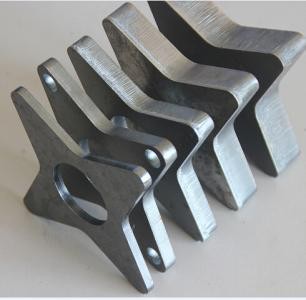

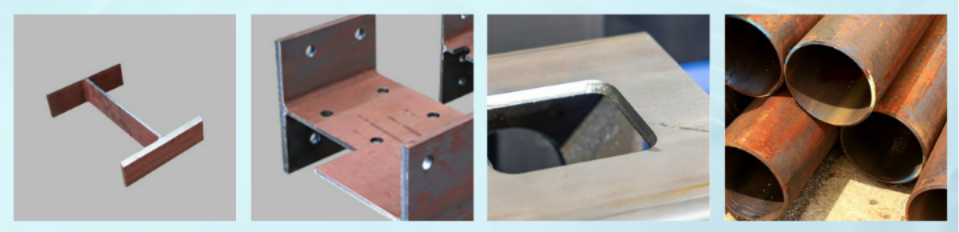

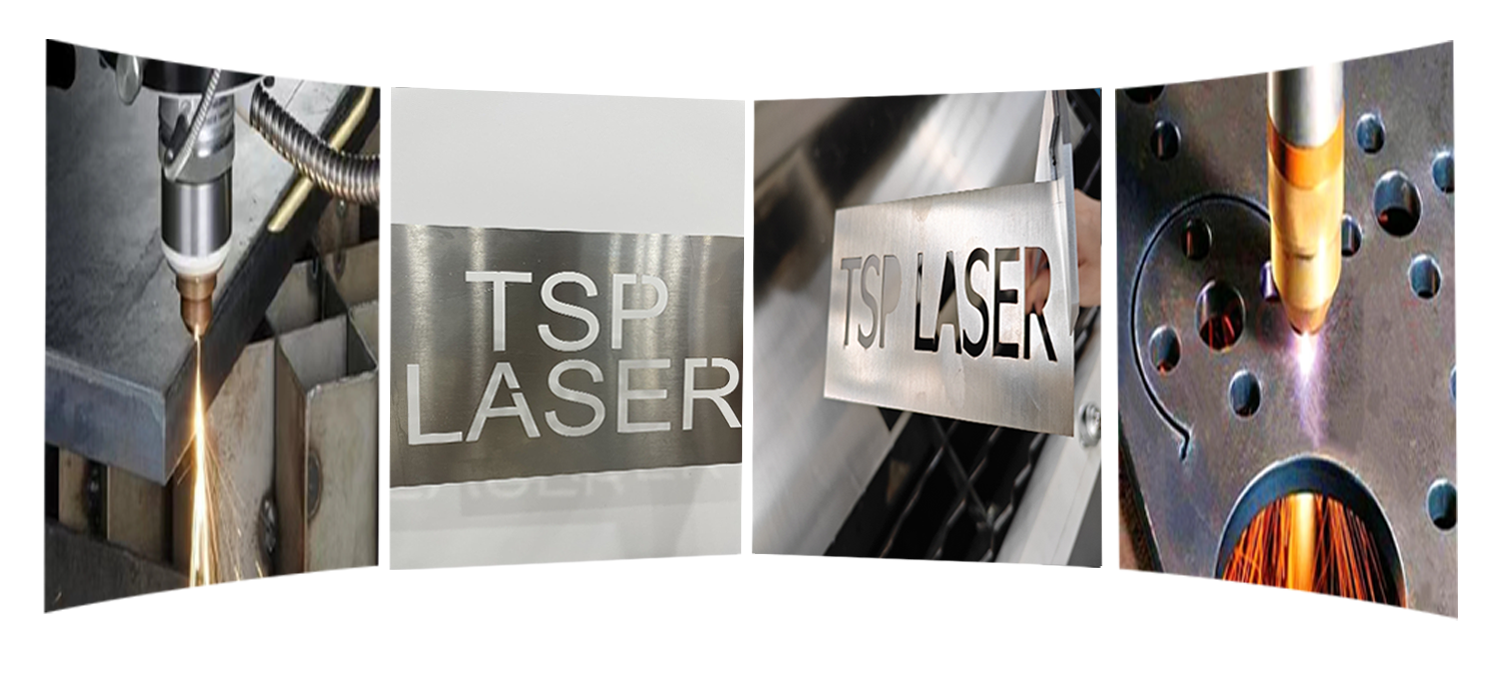

Product Gallery

High Dynamics & Top Quality

Our fiber laser cutting machines achieve a positioning speed of up to 180m/min and acceleration of 3G. Each fiber laser cutter is available with a 1 to 30kW IPG/MAX fiber laser source.

Superior Frame Construction

Machine frames undergo annealing at over 600°C to relieve stress, and they are built to last years of heavy use without distortion.

Frame Advantages

Very stiff and stable base frame
Deformation simulation made by CAE
Stress points analysis
Electric welding of high precision
Usage of high-tech boring machines for extreme precision parts
Customized to your needs – length and width as you wish
Flexible split plate welding frame design, suitable for standard container size
Efficient dust removal with optional smoke purifier for clean, environmentally friendly operation

Technical Specifications

Parameter	Specification
Working Area (Customizable)	12000 x 3000 mm / 12000 x 2000 mm / 12000 x 1000 mm
Laser Power	5kW - 30kW (MAX/Raycus)
Cutting Thickness	Up to 40mm
Machine Frame	Steel plate welding heavy duty frame
Servo Motors	Delta
Laser Head	BOCI BLT482P
Laser Controller	Fscut9200++ AB axis
Water Cooling System	Water chiller Hanli
Reducer	Motovario
Lubrication System	Full automatic
Proportional Valve	SMC
Transmission System	DTX linear square rails + LEITESEN gear
Exhaust Fan	Including
Max Acceleration	1.2G
Max Positioning Speed	110 m/min
Positioning Accuracy	±0.05 mm
Repeat Positioning Accuracy	±0.03 mm
Voltage	380V 3 Phase 50Hz
Working Environment	0-40°C, Humidity ≤80%
